TPU Drag Hose



Layflat Drag Hose is designed for the latest eco-friendly umbilical drag systems. It’s mainly to distribute slurry and manure as well as fertilizer in the farm. The system requires the hose connected between slurry reservoir (lagoons) and the tow tractor in the field. The tow tractor pulls the drag hose behind it. While the hose feeds the injection tool bar that deposits the manure in the plowed furrows. The TPU cover has better wear resistance which is 4-5 times that of rubber. The tensile strength is enough to bear the pull forces.

Structure:

Tube: TPU

Cover: TPU

Reinforce: high strength circular woven polyester or polyamide

tpu-layflat-hose-construction

Layflat Drag Hose Application:

Because of the super wear ability, the layflat hose is to distribute slurry and manure as well as fertilizer. It can also delivery water in self-propelled machine.

tpu-drag-hose-application

Characteristic:

●Resist oil, wear, acid, alkali, corrosion and cold

●No small flow

●Low coil volume for easy handlle

●Flexible in all weather conditions from -50 to +80℃

tpu-layflat-hose-feature

TPU Drag Hose Fittings:

Germany type Storz, American Bolt on style, Victaulic, Camlock

Packing:

Generally the package would be pallet or steel hose holder, but customized packing is also supported.

Advantage:

●Standard color black, other colors on request

●Individual mark

●Binding with couplings available on request

●Other diameters on request

●Standard lengths 100m and 200m

Temperature:  -55℃(-131℉) to 80℃(+176℉)

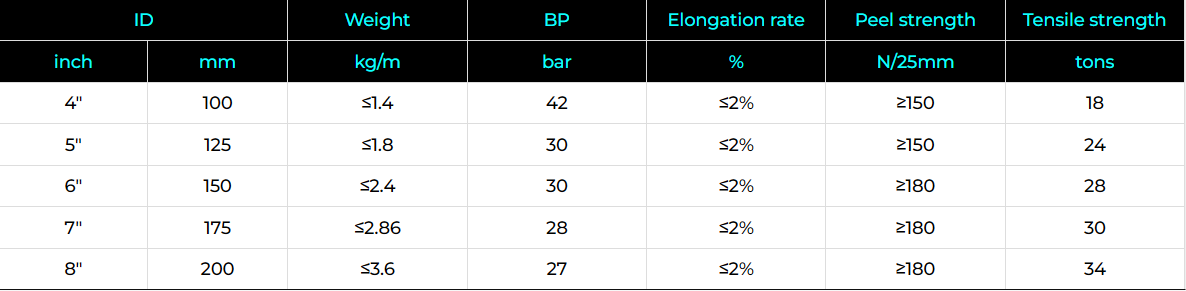

tpu-drag-hose-specification
